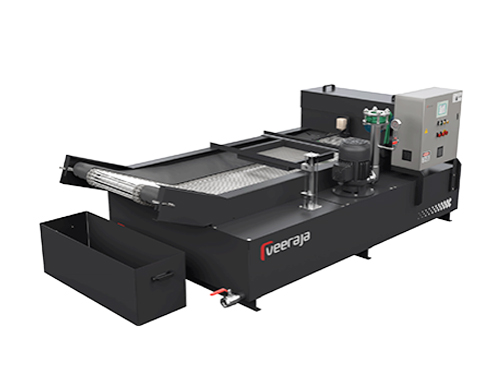

Paper Band Filters

Band filter are the simplest and oldest form of filters. Because of its simplicity in design it is still preferred choice for many application. Also check our Compact Vacuum filter
• Filter media is laid on conveyor. This is fitted on tank.
• Dirty fluid drops on the media.
• Clean fluid is collected in the tank below and pumped back.
• When media chokes, level starts rising above the media.
• This is sensed by a level switch.
• Dirty media is conveyed out by geared motor.

Features and Benefits :
• Suitable for fine filtration.
•Filtration capacity: 50 l/min to 300 l/min.
• Without conveyor. Very Low maintenance.
•Mounted on rollers. – Tank can be cleaned easily. Fits in 150 mm above tank level.
• Dirty paper wound on separate mandrel.
• Totally automatic operation.
• Common drive for magnetic separator.
• Very Compact Design. Ideal for individual machines
